Motorola PBX and CUCM Integration 200 Ok Issue

Motorola PBX is complaint on SIP RFC 3581 and CUCM is complaint on SIP RFC 3261. Due to this RFC compliance issue there are issues with SIP call setup between both of the Call Processing Servers, that is, CUCM and Motorola PBX

Motorola PBX has an “rport” parameter in the “Via” header field of the SIP INVITE that allows a
client to request that the server send the response back to the source IP address and port from
which the request originated which is included in RFC 3581. The “rport” parameter is analogous to
the “received” parameter except “rport” contains a port number, not the IP address. This report
parameter is not part of RFC 3261 and therefore CUCM does not contain the parameter in the SIP
signaling “Via” header field

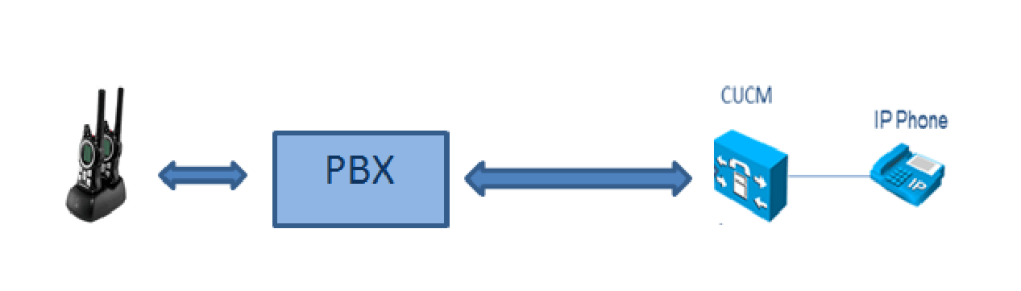

In the above scenario, there are issues with the incoming SIP call setup between the CUCM and
the MotoPBX system with the endpoint of a Walkie Talkie handset. When the CUCM receives the
SIP INVITE from the MotoPBX with the “rport” parameter, it sends out a 200 OK response without
the “rport” parameter in the “Via” header field. Also, a few other fields are added such as “Remote-
Party-ID”, “P-Asserted-Identity” header field, and Bandwidth information in the Session Description
Protocol (SDP) message body which the MotoPBX does not acknowledge. The call setup fails due
to an RFC compliance issue. So, in order to mitigate the call setup problem, there is a SIP
normalization script designed which removes the “rport” parameter from the incoming SIP Invite
and appends the “rport” parameter in the outbound 200 OK response to the same SIP Invite sent
by the MotoPBX. The script also removes the other header fields as mentioned previously

SIP Normalization Script

Note:- the script mentioned in the Cisco Guide is not correct at msg:setSdp. Cisco document says msg.setSdp(sdp) but it should be msg:setSdp(sdp)


M={}
function M.inbound_INVITE(msg)
local invite = msg:getHeader(“Via”)
local rport=string.gsub(invite,”rport”,””)
msg:modifyHeader(“Via”, rport)
end
function M.outbound_200_INVITE(msg)
msg:addHeaderValueParameter(“Via”,”rport”,”5060″)
msg:removeHeader(“P-Asserted-Identity”)
msg:removeHeader(“Remote-Party-ID”)
local sdp = msg:getSdp()
local sdpremove=string.gsub(sdp,”b=TIAS:%d%d%d%d%d”,””)
local sdp=string.gsub(sdpremove,”b=AS:%d%d”,””)
msg:setSdp(sdp)
end
return M

Inbound SIP Invite from MotoPBX


INVITE sip:8888@10.10.21.14;user=phone SIP/2.0
Via:SIP/2.0/UDP192.168.5.10:5060;
branch=z9hG4bK3ad3379d104e957767cf471e77bf2738;rport


Normalized INVITE Sent to CUCM after the “rport” Parameter is RemovedINVITE

sip:8888@10.10.21.14;user=phone SIP/2.0
Via: SIP/2.0/UDP 192.168.5.10:5060;
branch=z9hG4bK3ad3379d104e957767cf471e77bf2738;


200 OK Response Outbound to MotoPBX before Normalization


Via: SIP/2.0/UDP 192.168.5.10:5060;
branch=z9hG4bK3ad3379d104e957767cf471e77bf2738;
From: <sip:2202@192.168.5.10;user=phone>;
tag=60817f1777729d1062239475498676f4
To: <sip:8888@10.10.21.14;user=phone>;
tag=107~f59e0381-0cdb-4ad3-b769-99c8c3c177c4-20600964
Date: Thu, 27 Feb 2014 03:22:02 GMT
Call-ID: 3f42d82e786bf9f332567ca566f3c1dd
CSeq: 1 INVITE
Allow: INVITE, OPTIONS, INFO, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY
Allow-Events: presence, kpml
Supported: replaces
Supported: X-cisco-srtp-fallback
Supported: Geolocation
Session-Expires: 5000;refresher=uas
Require: timer
P-Asserted-Identity: “Kosal-LT” <sip:8888@10.10.21.14>
Remote-Party-ID: “Kosal-LT” <sip:8888@10.10.21.14>;party=called;screen=yes;privacy=off
Contact: <sip:8888@10.10.21.14:5060>
Content-Type: application/sdp
Content-Length: 232
v=0
o=CiscoSystemsCCM-SIP 107 1 IN IP4 10.10.21.14
s=SIP Call
c=IN IP4 10.10.21.14
b=TIAS:64000
b=AS:64


Normalized Outbound 200 OK Response


SIP/2.0 200 OKVia: SIP/2.0/UDP 192.168.5.10:5060;
branch=z9hG4bK3ad3379d104e957767cf471e77bf2738;;rport=5060
From: <sip:2202@192.168.5.10;user=phone>;tag=60817f1777729d1062239475498676f4
To: <sip:8888@10.10.21.14;user=phone>;
tag=107~f59e0381-0cdb-4ad3-b769-99c8c3c177c4-20600964
Date: Thu, 27 Feb 2014 03:22:02 GMT
Call-ID: 3f42d82e786bf9f332567ca566f3c1dd
CSeq: 1 INVITE
Allow: INVITE, OPTIONS, INFO, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY
Allow-Events: presence, kpml
Supported: replaces
Supported: X-cisco-srtp-fallback
Supported: Geolocation
Session-Expires: 5000;refresher=uas
Require: timer
Contact: <sip:8888@10.10.21.14:5060>
Content-Length: 213
Content-Type: application/sdp
v=0
o=CiscoSystemsCCM-SIP 107 1 IN IP4 10.10.21.14
s=SIP Call
c=IN IP4 10.10.21.14
t=0 0
