For secure signaling & media , do we need mixed mode ?

Security is a major concern for every organization. But when it comes to UC security many organizations are less concerned .

Some major changes happened with UCM security . Today’s blogs is all about comparing the UCM security and the changes with different CSR revision.

We all are familiar with UCM Non Secure and Mixed mode. I am not explaining the process of converting non secure to mixed mode. Because on google you can find large number of documents regarding this.

CUCM provides two security modes:

  • Non-secure mode (default mode)
  • Mixed mode (secure mode)

Non-secure mode is the default mode when a CUCM cluster (or server) is installed fresh. In this mode, CUCM cannot provide secure signaling or media services. With Mixed mode you can have secure signalling and media service.

Do we need Mixed mode to make signaling and media encrypted ? NO, With the latest version we don’t need mixed mode to encrypt the signaling and media.

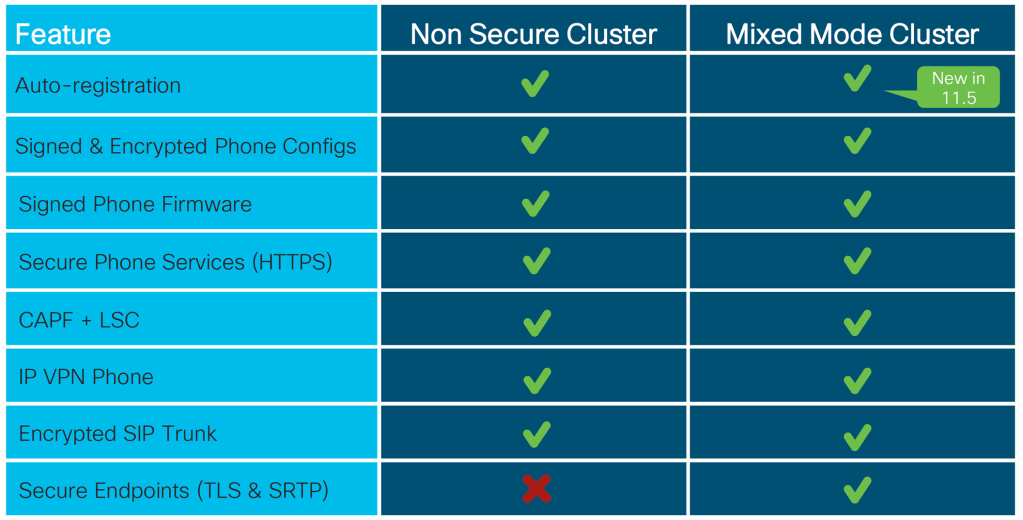

Cluster Security Mode: Feature Tradeoffs

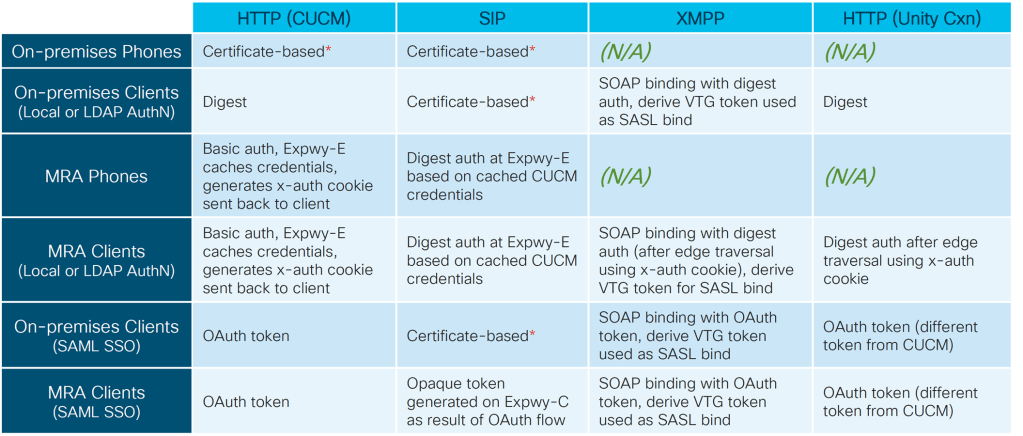

BEFORE CSR 12.0

API Protection

*: Requires CAPF enrollment and “mixed mode”

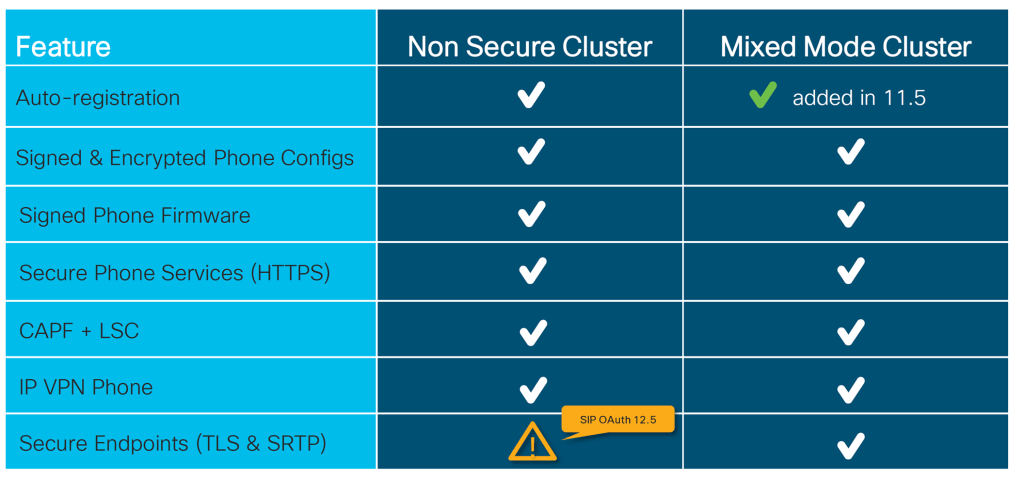

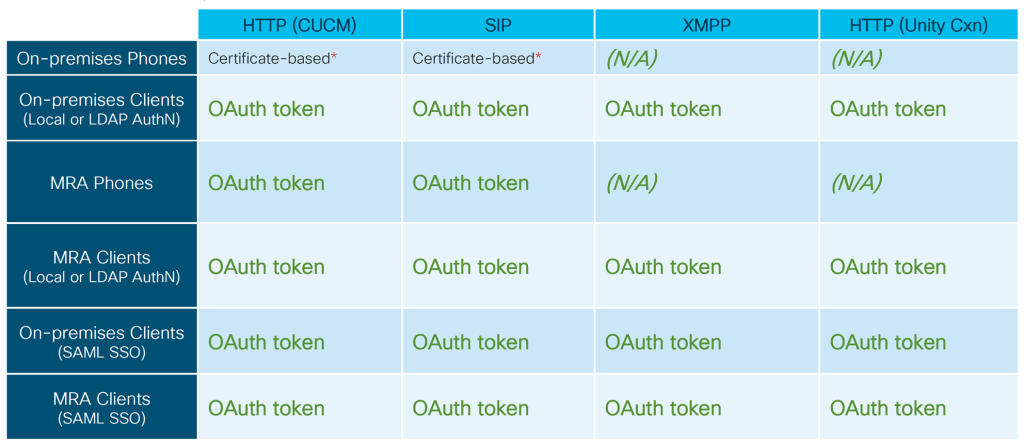

CSR 12.5

SIP OAuth for Jabber on Non Secure cluster.

API Protection

*: Requires CAPF enrollment and “mixed mode”

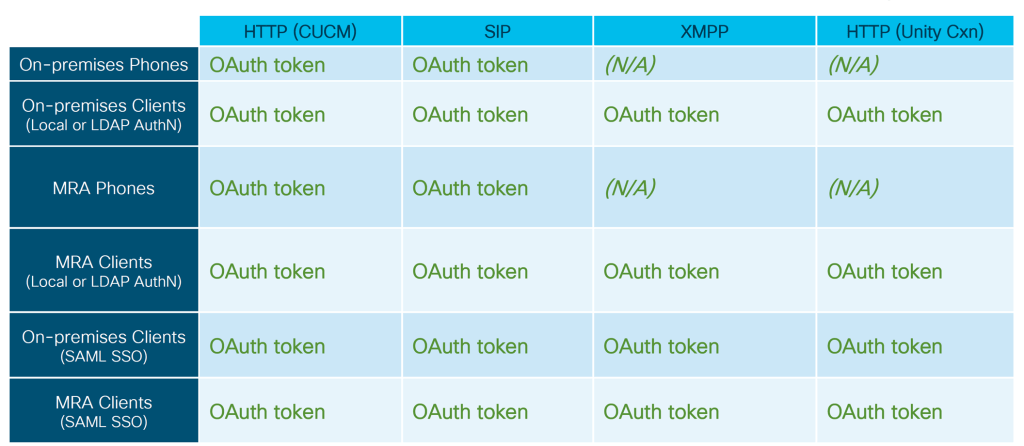

CSR 14

API Protection

No need for CAPF enrollment or “mixed mode”

SIP OAuth Mode Overview

Secure registrations to Unified Communications Manager involves a process of updating CTL files, setting up a mutual certificate trust store and so on. If devices are switching between on-premises and off-premises, it is difficult to update LSCs and renew Certificate Authority Proxy Function (CAPF) enrolment each time when a secure registration is completed.

SIP OAuth mode allows you to use OAuth refresh tokens for all devices authentication in secure environments. This feature enhances the security ofUnified Communications Manager.

Unified Communications Manager verifies the token presented by the endpoints and serves the configuration files only to authorized ones. OAuth token validation during SIP registration is completed when OAuth based authorization is enabled on Unified Communications Manager cluster and other Cisco devices.

OAuth support for SIP registrations is extended for

  • Cisco Jabber devices from Cisco Unified Communications Manager 12.5 release onwards
  • SIP Phones from Cisco Unified Communications ManagerRelease 14 onwards

The following are the Phone Security Profile Types that can be configured for OAuth.

  • Cisco Dual Mode For iPhone (TCT device)
  • Cisco Dual Mode For Android (BOT device)
  • Cisco Unified Client Service Framework (CSF device)
  • Cisco Jabber for Tablet (TAB device)
  • Universal Device Template
  • Cisco 8811
  • Cisco 8841
  • Cisco 8851
  • Cisco 8851NR
  • Cisco 8861
  • Cisco 7811
  • Cisco 7821
  • Cisco 7841
  • Cisco 7861
  • Cisco 8845
  • Cisco 8865
  • Cisco 8865NR
  • Cisco 7832
  • Cisco 8832
  • Cisco 8832NR

Before deciding to go with OAuth, make sure you met all requirement.

SIP OAuth Mode Prerequisites

This feature assumes that you have already completed the following:

  • Ensure Unified Communications Manager is registered to a Smart or Virtual account with allow export-controlled functionality.
  • Ensure client firmware supports SIP OAuth.

SIP OAuth Mode Configuration Task Flow

Complete the following tasks to configure SIP OAuth for your system.

Procedure

 Command or ActionPurpose
Step 1Upload CA Certificate to the Phone Edge TrustUpload CA Certificate to the phone edge trust to get the tokens. This step is not applicable for Cisco Jabber device.
Step 2Enable OAuth Access Token for DevicesEnable OAuth for SIP registrations in Cisco IP Phone 7800 and 8800 enterprise series. This step is not applicable for Cisco Jabber device.
Step 3Configure Refresh LoginsEnable oauth with refresh login flow on Unified Communications Manager to register the device via SIP OAuth.
Step 4Configure OAuth PortsAssign the ports for OAuth for each node that has OAuth registration.
Step 5Configure OAuth Connection to Expressway-CConfigure a mutually authenticated TLS connection to Expressway-C.
Step 6Enable SIP OAuth ModeEnable OAuth services using a CLI command on the publisher node.
Step 7Restart Cisco CallManager ServiceRestart this service on all nodes that have OAuth registrations.
Step 8Configure Device Security Mode in Phone Security ProfileConfigure OAuth support within a Phone Security Profile if you are deploying encryption for the endpoints.
Step 9(Optional) Configure SIP OAuth Registered Phones for MRA Mode(Optional) Configure SIP OAuth registered phones in MRA mode. This step is not applicable for Cisco Jabber device.
